KeyedSelection

KeyedSelection - list KeyedSelection - multi list KeyedSelection - Radio

Fig. 1 - KeyedSelection control - List, MultiList, Radio

A control, similar to the Selection control, that allows selection of a single item, or zero or more items, from a list, according to the SelectionStyle. The difference is that it allows script writers and developers to construct script flows which do not rely on hard-coded values, i.e. values which may be assigned at runtime. Writers can

associate each item in the control with a key
set the initial selected item(s) using keys/ values
get the user selected item(s) using keys

Properties that are common to this and many other controls are described in Common Properties.

KeyedSelection properties

Property	Description
Background	See Common Properties
BorderBrush	See Common Properties
BorderThickness	See Common Properties
DisplayBlankValues	Whether the control displays values from the Items list that are empty
FontFamily	See Common Properties
FontSize	See Common Properties. Spacing between items is scaled automatically
FontStyle	See Common Properties
FontWeight	See Common Properties
Foreground	See Common Properties
Height	See Common Properties. A vertical scrollbar is created and controlled automatically
IsEnabled	See Common Properties

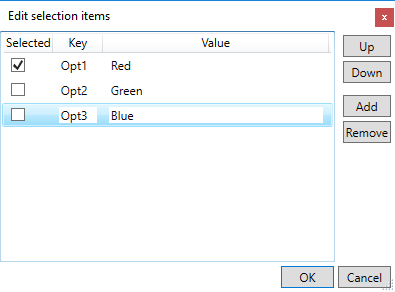

Items	Defines a list of displayed items. To edit the list, click on the Browse (...) button. The Edit selection items dialogue opens (Fig. 2) : Fig. 2 - Edit selection items The Key column contains a mandatory key name for each value. For usage details, see the Selection control.
Language	See Common Properties
Margin	See Common Properties
Name	See Common Properties
SelectionStyle	See the Selection control.
TabIndex	See Common Properties
Visibility	See Common Properties
Width	See Common Properties

For details of usage within the script flow, see Collection Controls.
